Intel DG45FC (for Core2Duo FSB1333 [Socket 775], HDMI, DVI) (Remnant)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel DG45FC (for Core2Duo FSB1333 [Socket 775], HDMI, DVI) (Remnant)
3D 360° View
  • FSB1333 !
  • HDMI !
  • DVI !
  • DirectX 10 !

Remnant with I/O shield, 2x SATA cable, manual, DVI-VGA adapter. 2 years warranty.

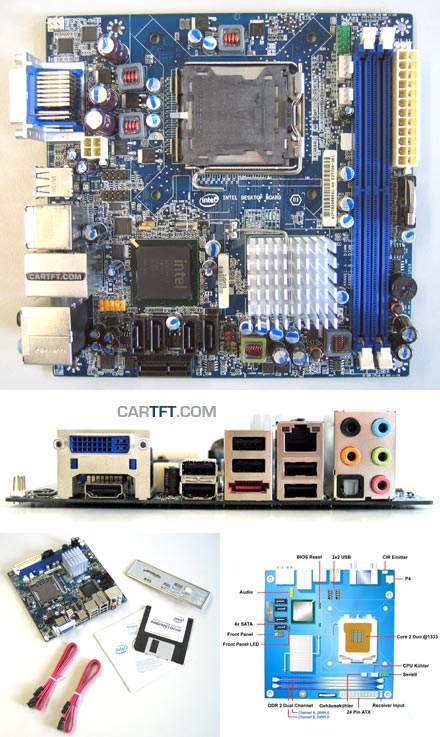

The Multimedia Desktop Board DG45FC is based on Intel G45 Express chipset with Sockel 775 for the Intel Core Duo family.
The board is equipped with the Intel GMA X4500HD graphics chip, which supports DirectX 10 and takes load from the CPU when playing High Definition videos. The high amount of connectors and features like HDMI Port, Blue-Ray- and HD DVD-support, 8 channel audio, SPDIF and the outstanding performance are making this the perfect base for home cinema entertainment or carpc systems.



Note : The Original CPU heatsink which comes with Boxed CPU
[more]

Share

CPU Intel Core Duo @ 1333 FSB
Graphics Intel GMA X4500HD
Formfactor ITX (17x17cm)
RAM 2x DDR-II 667/800
Audio Intel HD Audio (8 channels)
Base Intel ITX
USB 10x USB2.0
Firewire --
IDE/SATA 4x SATA
LAN 1x 10/100/1000 Mbit
Parallel --
Serial 1x
yes TV-Out
no PCI
no Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash

Remnant with I/O shield, 2x SATA cable, manual, DVI-VGA adapter. 2 years warranty.

The Multimedia Desktop Board DG45FC is based on Intel G45 Express chipset with Sockel 775 for the Intel Core Duo family.
The board is equipped with the Intel GMA X4500HD graphics chip, which supports DirectX 10 and takes load from the CPU when playing High Definition videos. The high amount of connectors and features like HDMI Port, Blue-Ray- and HD DVD-support, 8 channel audio, SPDIF and the outstanding performance are making this the perfect base for home cinema entertainment or carpc systems.



Note : The Original CPU heatsink which comes with Boxed CPUs is too heigh for almost all ITX enclosures. Thats why it does not fit into every enclosure.
With LowProfile heatsink/fan compatible with :
- M300(-LCD)
- Morex enclosures 2699/3677/3777/3688


For Operating you need a P4 adapter or a PSU with P4 connector


Name DG45FC
Form Factor Mini-ITX Mainboard
CPU Intel Core 2 Duo , upto 13333FSB (Sockel 775)
Chipset Intel G45 (ICH10)
Graphics Intel GMA X4500HD
Memory 2x DDR2 667/800 RAM (4GB max)
Power 24 Pin ATX, P4-connector
Connectors (rear) - 1x DVI
- 1x HDMI
- 6x USB 2.0
- 1x eSATA
- Audio
- 1x LAN 10/100/1000 MBit
- SPDIF
SATA 4x SATA-II (RAID), 1x eSATA
Audio Intel High Definition Audio (8 channels)
Connectors (internal) - PCIe 1x
- Audio
- 4x USB 2.0
- 4x SATA
- 1x Serial
Included - DG45FC Mainboard
- I/O ATX rear plate
- 2x SATA cable
- Quickstart-Guide
- Drivers CD, Raid Drivers Floppy disk
Data sheet Download (PDF)
Data sheet Print view
Review [DE] Download (PDF)
Review [EN] Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 11 ratings
4 von 5 Sternen from rodkendrick@blueyonder.co.uk am 18.06.2011 |

Had Problems loading an Operating system - Windows XP, 7 and even Ubuntu would not load.the reason is the graphics drivers for the onboard card needs to be updated via the BIOS, this can be downloaded via the Intel website. Read all the info on bios flashing before doing it

5 von 5 Sternen from sjyhtiot am 07.05.2010 | | See all my comments

Good motherboard for carpc

3 von 5 Sternen from fabio77ts am 01.02.2010 | | See all my comments

Scheda madre ottima, mi sono trovato veramente bene, peccatto che non abbia l'uscita s-video altrimenti era completissima. Cmq ottimo prodotto!

5 von 5 Sternen from pedrom am 07.01.2010 | | See all my comments

Excellent motherboard for the price. With this motherboard you can build a smal but very powerfull system. Togethor with a core 2 duo cpu the motherboard just rocks. Five stars

3 von 5 Sternen from Elefteria am 06.11.2009 | | See all my comments

Software ist ein pischen umständlich.
Der Bildschirm auf DVI nach Update dunkel.
Vieleicht auch mein fehler. HDMI ok.
