Form Factor |

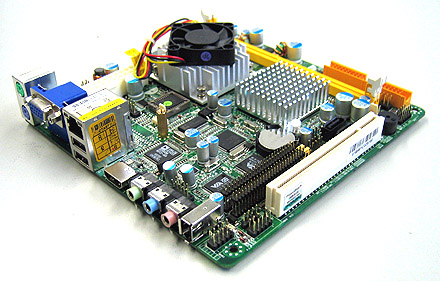

Mini-ITX Express Motherboard |
CPU |
VIA C7 1.5GHZ CPU (12W) |
Memory |
1 * 240-pin DIMM Sockets for DDR2 533 up to 1 GB |
Chipset |
VIA CX700M Single Chipset |
Power Management |
ACPI S3 Compliant ,supports power saving mode |
PCI enhanced IDE |
2* Ultra DMA 133 / 100 / 66 IDE Devices Support |
Serial ATA Interface |
2 Serial ATA2 HDDs with RAID 0, 1 Function Support |
VGA Interface |
VIA Unichrome Pro II |
Video Memory |
Share Memory up to 128MB |
Audio Interface |
VIA VT1708A 6-Channel HD Audio CODEC |
LAN Interface |
VIA VT6122 10 / 100 / 1000 PCI LAN |
Extended Interface |
1 * 32-bit PCI Slot |
1 * PCI 120-Pin Adapter Connector |
with Expansion Daughter Boards |
Internal I/O Port |
2 * High Speed USB Connectors for 4 USB 2.0 Ports |
1 * CPU Smart Fan Connector, 2 * Chassis Fan Connectors |
2 * 9-Pin COM Port Connector |
1 * CD / AUX Audio in & SPEAK Out |
1 * HDTV Out Connector |
1 * IrDA (SIR) |
1 * 6-pin Video Input Pin-header |
1 * PCI 120-Pin Adapter Conn. |
External I/O Port |
2 * High Speed USB Connectors @ 480 M-bit / s |
1 * D-Sub 15-pin VGA Connector |
1 * HDMI Port |
1 * PS / 2 Mouse & 1 * PS/2 Keyboard |
1 * RJ45 Connector |
1 * Audio I / O |
1 * IEEE 1394a Connector |
BIOS |
Award 4 MB Flash ROM |
Power Requirement |
Standard 24-Pin ATX Power supply |
Dimension |
170mm x 170mm |
