NORVI X-UARTIO (Extension Modul f. Norvi X, 2x RS485, 2xRS232, 4x UART-Port)

PRODUCT IS CURRENTLY NOT AVAILABLE !

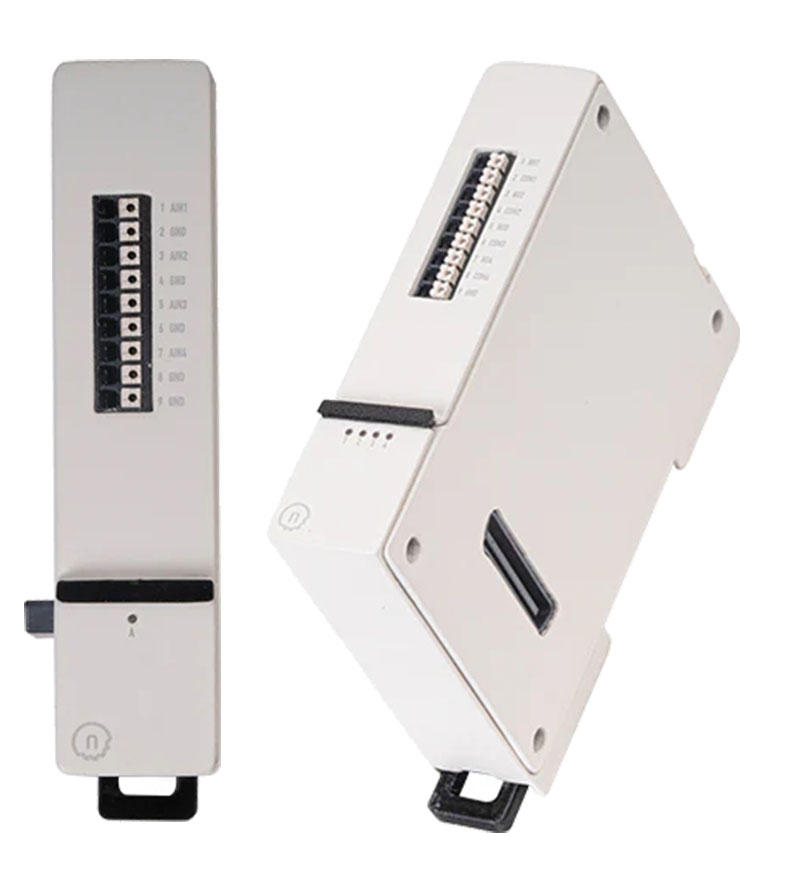

NORVI X-UARTIO (Extension Modul f. Norvi X, 2x RS485, 2xRS232, 4x UART-Port)
  • Norvi X Series !
  • 2xRS232 / 2xRS232 !
  • 4x UART-Port !
  • Extension !

  • 2 × RS485 communication ports
  • 2 × RS232 communication ports
  • 4 × UART ports (multiplexed)
  • Industrial-grade RS485 and RS232 transceivers
  • Flexible I/O routing via GPIO- and CS-controlled switching
  • UART pins usable as GPIO when not configured for UART
  • Designed for NORVI X expansion architecture
[more]

Share

  • 2 × RS485 communication ports
  • 2 × RS232 communication ports
  • 4 × UART ports (multiplexed)
  • Industrial-grade RS485 and RS232 transceivers
  • Flexible I/O routing via GPIO- and CS-controlled switching
  • UART pins usable as GPIO when not configured for UART
  • Designed for NORVI X expansion architecture


The NORVI X-UARTIO is a versatile communication expansion module for the NORVI X modular controller platform. It provides multiple serial communication interfaces including RS485, RS232, and UART, enabling flexible connectivity to industrial devices, sensors, meters, and peripherals.

The module uses shared MCU I/O lines with intelligent switching, allowing multiple physical ports to be supported while minimizing processor pin usage. Interface selection is fully controlled via firmware.

System Architecture:
RS485: Half-duplex differential communication
RS232: Full-duplex serial communication
UART (TTL level): Direct MCU UART / GPIO connectivity


Range of product NORVI X
Product type /
Model
Expansion Module f. NORVI X Series
NORVI X-UARTIO
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
RS485 Channels1 (Selectable)
RS232 Channels1 (Selectable)
UART Channels2 (Multiplexed)
RS485 TransceiverSN65HVD72DGKR
UART Logic LevelTTL
Power SupplySupplied via NORVI X expansion bus
Communication BusInternal Expansion Bus
Connector TypePush-in Terminal Block
Data sheet Download (PDF)
Data sheet Print view
