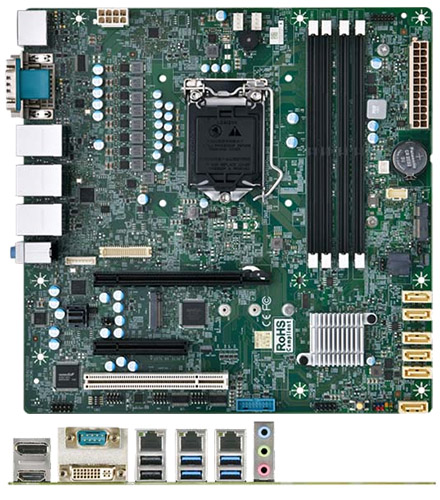

Mitac PH10CMU-W480-3LAN Micro-ATX (Intel W480, LGA1200) [PCIe x16, PCIe x8, PCI, 3x LAN]

Mitac PH10CMU-W480-3LAN Micro-ATX (Intel W480, LGA1200) [PCIe x16, PCIe x8, PCI, 3x LAN]
  • W480 !
  • 3x LAN !

  • Up to Intel® Comet Lake 10th Gen i9 125W (10 Cores) LGA1200 processor
  • Intel W480E Chipset
  • Intel® vPro technology supported
  • Support 1 x PCIe X16 slot, 1 x PCIe X8 slot, and 1 x PCI slot 1 x M.2 2280M-key (NVME), 1 x M.2 2230 E-key (CNVi)
  • Support triple display for 1 x DisplayPort, 1 x HDMI and 1 x DVI
  • Up to 6 x SATAIII (support RAID 0, 1, 5, 10)
  • Up to 3 x Intel® Gigabit Ethernet
  • Up to 6 x USB 3.2 Gen1, 4 x USB 2.0, 4 x COM ports
  • ATX power input




Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
FORM FACTORMicro-ATX: 9.6” x 9.6” (244 mm x 244 mm)
PROCESSOR10th Gen Intel® Comet Lake LGA1200 Socket Processor, Core i9/i7/i5/i3 up to 10-core TDP Max. 125W
CHIPSETIntel® Q470E / W480E (Support RAID 0 / 1 / 5 / 10)
SYSTEM MEMORYDDR4 2933MHz
/ Max. 64 GB (Non-ECC: H420E/Q470E, ECC: W480E)
/ 4 x 288-pin U-DIMM
GRAPHICSIntel® HD Graphics
ETHERNET Intel® I219-LM Giga LAN + 2 x Intel® I210-AT Giga LAN
AUDIORealtek® ALC662 / ALC888
I/O CHIPSETNuvoton NCT6126D(eSPI)
TPMTPM Header / (support optional TPM module board NPCT750)
EXPANSION SLOT1.PCIe 3.0 X16 slot
PCIe x16 support 3 options of PCIe switch:
#1: 1 x PCIe X16,
#2: 2 x PCIe X8,
#3: 1 x PCIe X8 + 2 x PCIe X4
2.PCIe 3.0 X8 slot (X4 Lanes)
PCIe x4 lanes is switched with M.2 2242/2260/2280 slot
3. PCI slot
/ 4. M.2 2242 / 2260 / 2280 M key (PCIe x4 ,SATA)
M.2 2280 for H420E support SATA only
5. M.2 2230 E key (PCIe x1, USB2.0, CNVi)
/ **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
BIOS256 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
VGA-
DVIUp to 1920 x 1200 @60 Hz
HDMIUp to 4K (4096 x 2160) @30 Hz
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDS-
eDP (Option)Up to 4K (4096 x 2304) @60 Hz
USB2 x USB 2.0 / 4 x USB 3.1 Gen1 (Q470E / W480E) / 3 x USB 3.1 Gen1 (H420E)
DISPLAY I/O1 x HDMI 1.4 / 1 x DisplayPort 1.2 / 1 x DVI-I
AUDIO I/O1 x 3-stack Audio Jack (Mic-in, Line-in, and Line-out)
LAN I/O3 x RJ-45 (1 x Optional)
SERIAL PORT1 x RS232
PS/2 PORT-
OTHERS-
STORAGE6 x SATAIII (Q470E / W480E)
/ 4 x SATAIII (H420E)
USB2 x USB 3.1
/ 2 x USB 2.0
DISPLAY I/O1 x Backlight Connector / 1 x eDP
AUDIO I/O-
SERIAL PORT2 x RS232 / 1 x RS232 / 422 / 485
PS/2 PORT-
PARALLEL PORT-
GPIO1 x MiAPI Header (Programmable. Support 10-bit GPIO)
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x 8-pin ATX Power Connector / 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper
POWER INPUTATX 8-pin + ATX 24-pin
OPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / *Class B by request for customization SKU / FCC Class A
OS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x I/O Bracket
